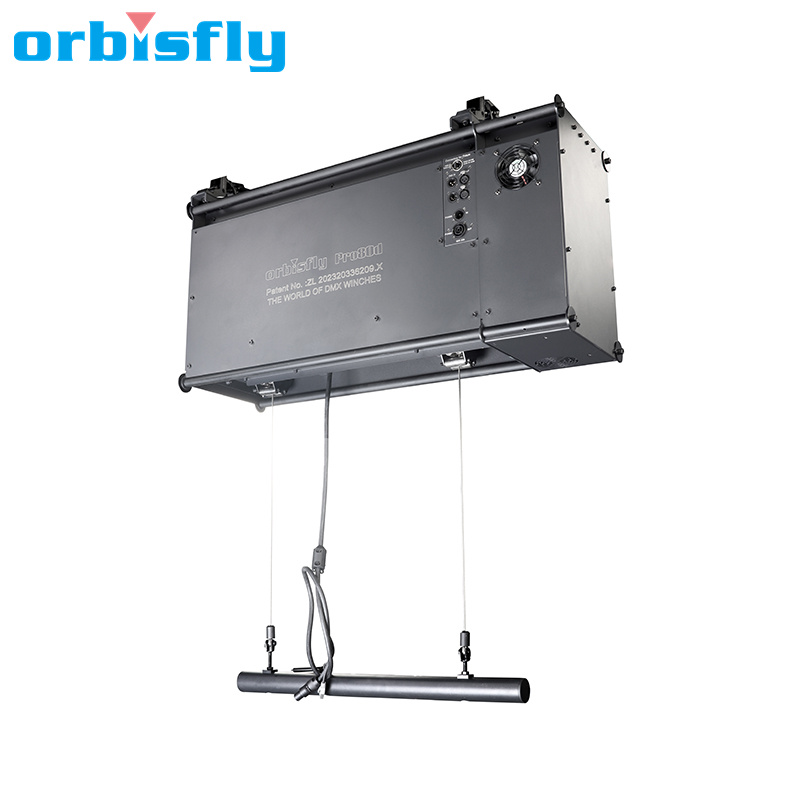

Technical Details:
Lifting capacity: 80 kg (176.4 lb)
Lifting height: 12m (40 ft) / 20m(65.6 ft)
Lifting speed: 100cm/s (3.5-39.4 in/s)

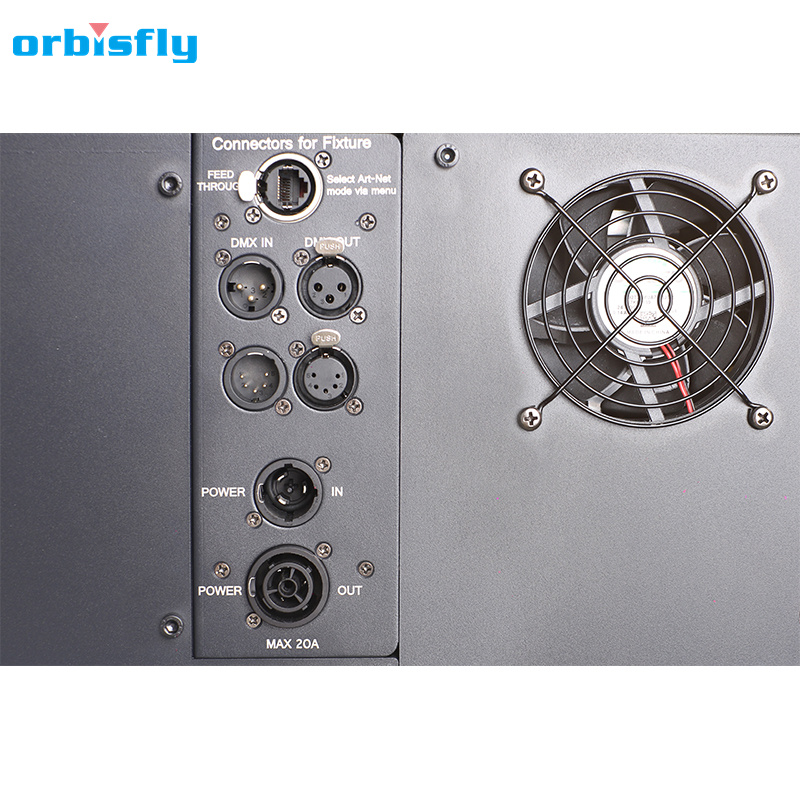

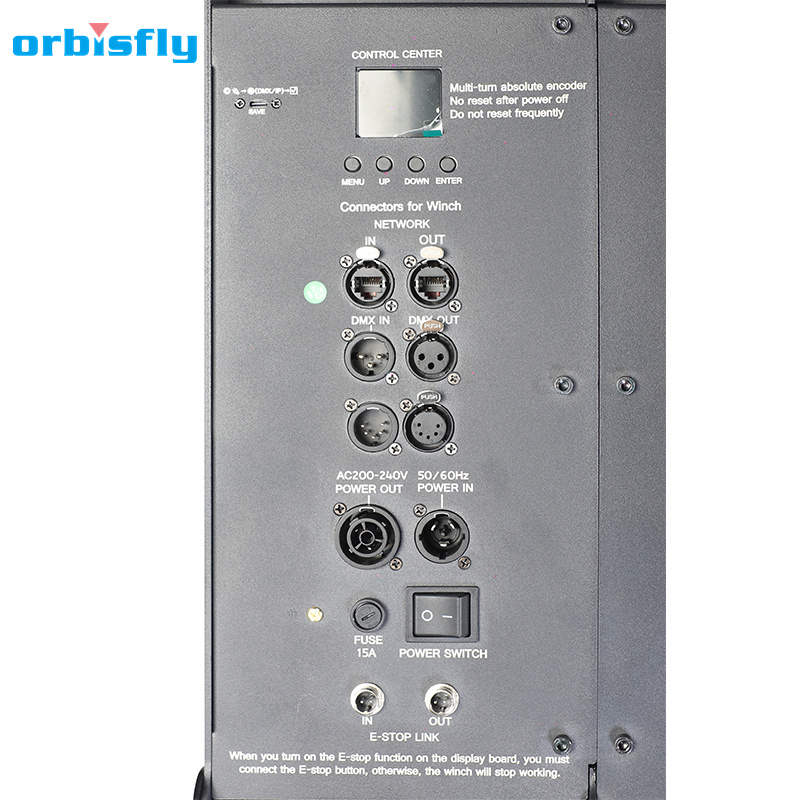

Through Connection - Input: Neutrik powerCON TRUE1 & EtherCON (F)
Through Connection - Output: Neutrik powerCON TRUE1 & EtherCON (M) & XLR3 & XLR5 & HDMI
Through Connection - Power: 20A/240VAC or DC (class II) 2x2.5mm2 (AWG14)
Through Connection - Signal: Four twisted pairs Cat6 (5120 Mbit/s)
Ethernet: Art-Net, sACN
Voltage: 200-240 VAC (110V need customized)
Frequency: 50-60 Hz
Power consumption: 750 W (5.5-7.9 A)
Power inlet: Neutrik powerCON TRUE1 NACPX (F/M)
DMX control signal: DMX 512 1990+DMX512A
DMX channels: 6/7
DMX control connection: 3/5 Pole XLR (F/M)
Snap hook: 2x8 mm (5/16 in) galvanized steel w/Bar 708 mm (27.8 in) 858mm(33.7in)
Fleet angle: None
Fleet travel: 83 mm (3.3 in)
Minimum load: 5 kg (11.02 lb)
Noise emission: ≈50 dB at 1m (3.3 ft)
Ambient temperature: 5-40 °C (41-104 °F)
Mounting clamp: 4 x Slim eye coupler 42-52 mm (2 in)
Servo Motor: 230 V AC, 0.75 kW Servo Motor(Multi-turn absolute encoder)
Duty cycle: 100% can run 24 hours with load.
Lifting wire: 3 mm (1/8 in) 19x7 galv. steel wire (EN 12385-4)
Minimum wire breaking load: 1217 kg (11935 N / 2683 lb)
Wire safety factor: >10
Weight: 60 kg (132.3 Ib) / 70 kg (154.3 Ib)
Dimensions: 937×312x686 mm / 1166×313×809 mm
