Orbisfly kinetic lights dmx winch kinetic winch【EastSun Technology】

DMX Winch （Orbisfly & DiGidot）and light fixtures f

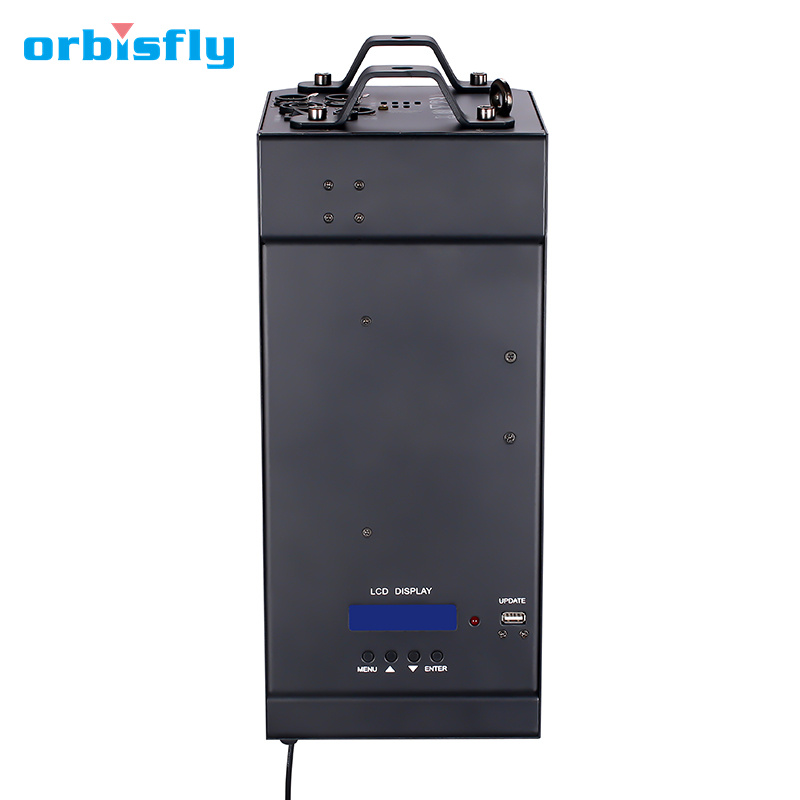

Orbisfly kinetic lights dmx winch kinetic winch

Product model: ES-L31 Kinetic lighting with RGB control

Specification:

Lifting height, m: 18M

Lifting speed, cm/s: 100

Load on cable, MAX kg: 1.2

Net Weight, kg: 8.8

Power consumption, W: 40

Working temperature,°C: 5-45

Protection rating: IP20

Dimension,LxWxH, mm: 199*170*376

Carton size,LxWxH, mm: 365*360*365(2in1)

DMX channels: 5/6/9/10 Channels

Control mode: DMX512 console or Madrix software/RDM function

Operation menu: LCD1602 SCREEN DISPLAY

Power Connect: PowerCon:IN & OUT

DMX XLR: 5PIN XLR & 3PIN XLR

Power supply: 100V-240 VAC, 50-60 Hz

Power on cable: 4 cores, var. 1-24 VDC 1A(max) for ch
