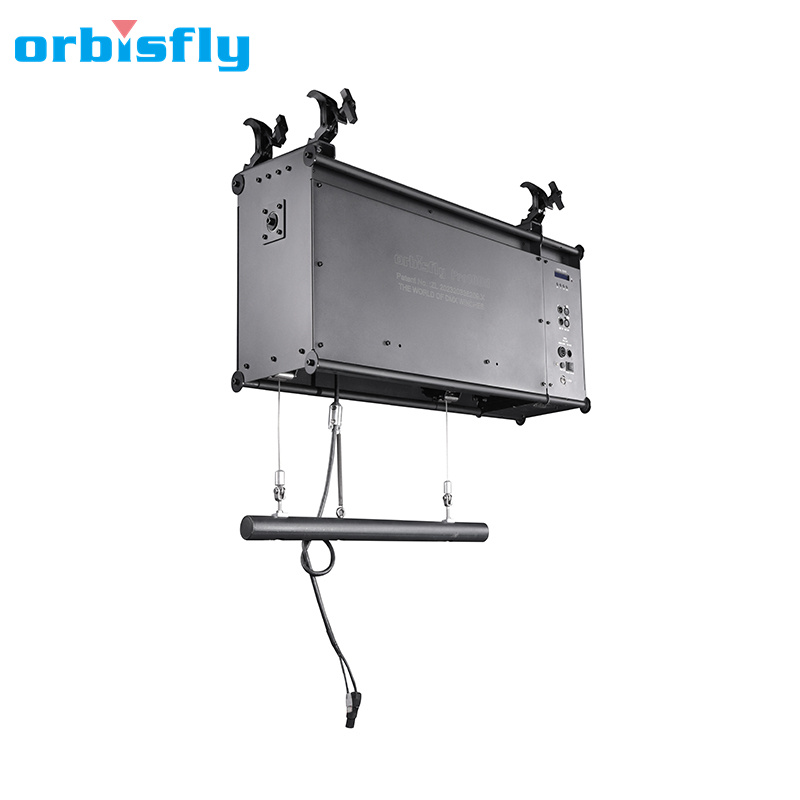

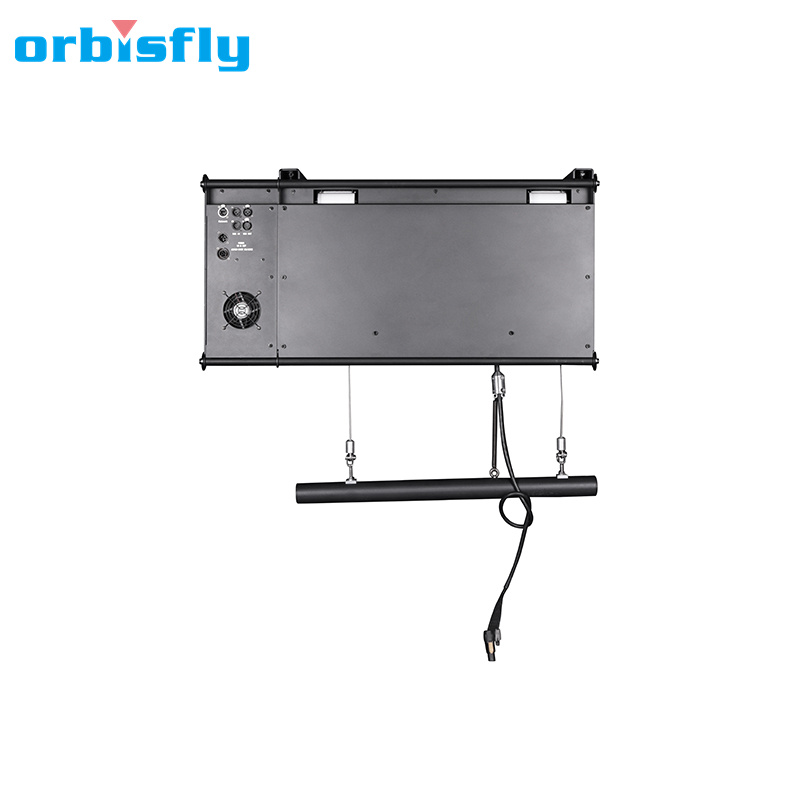

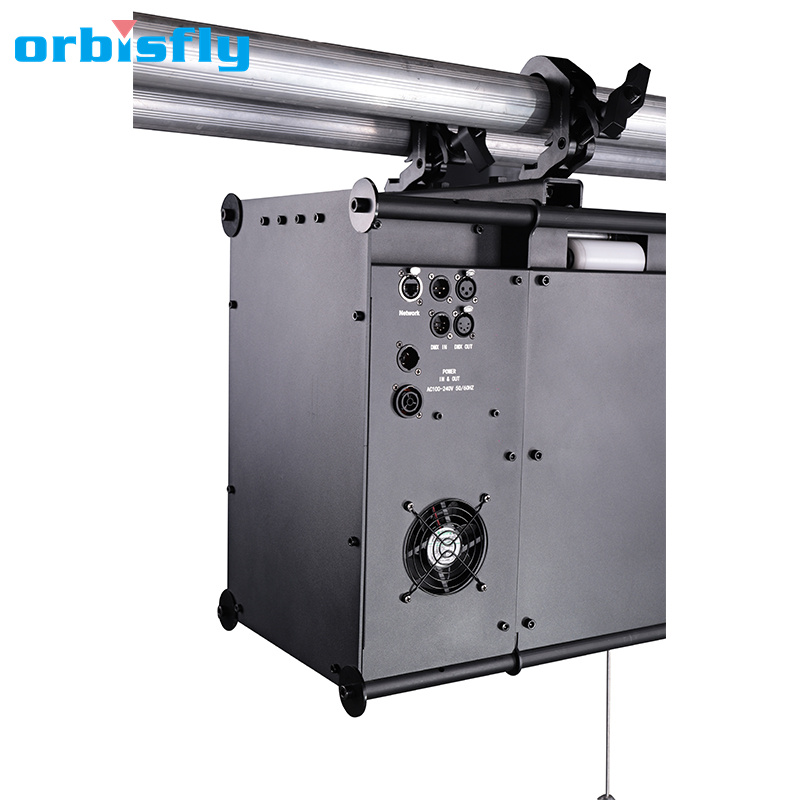

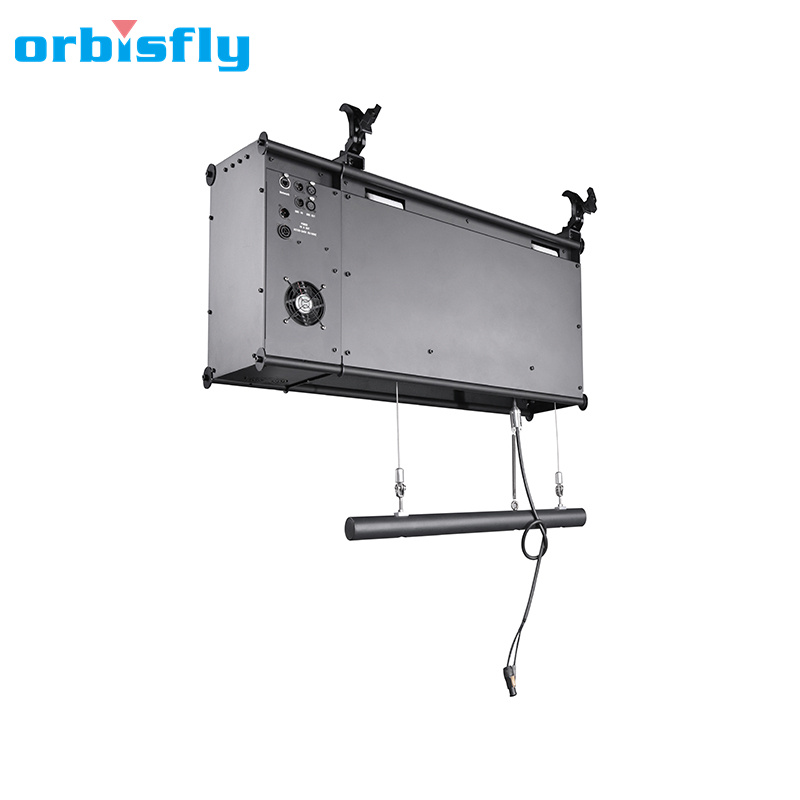

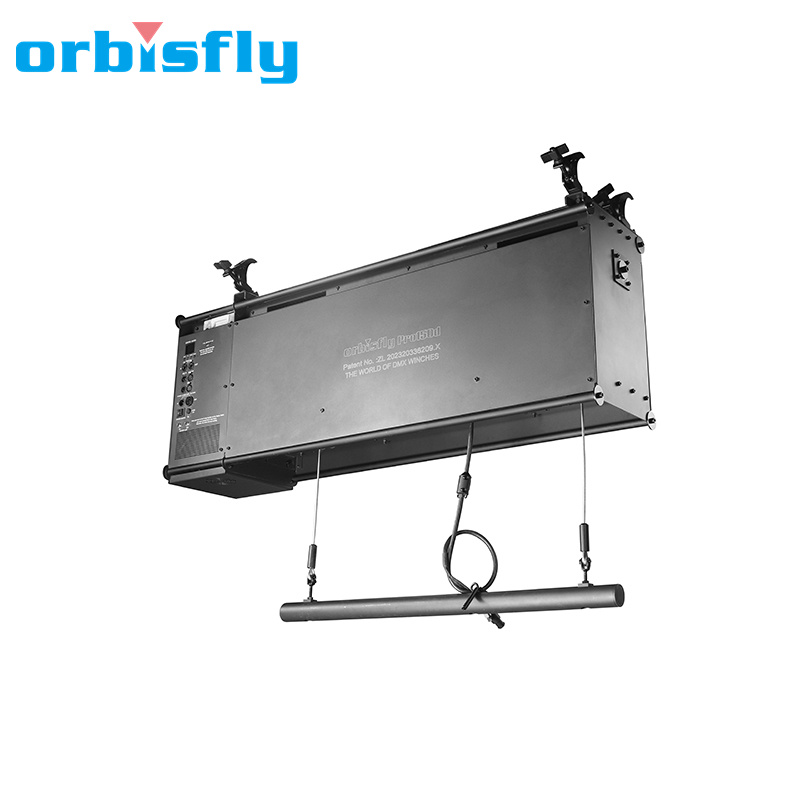

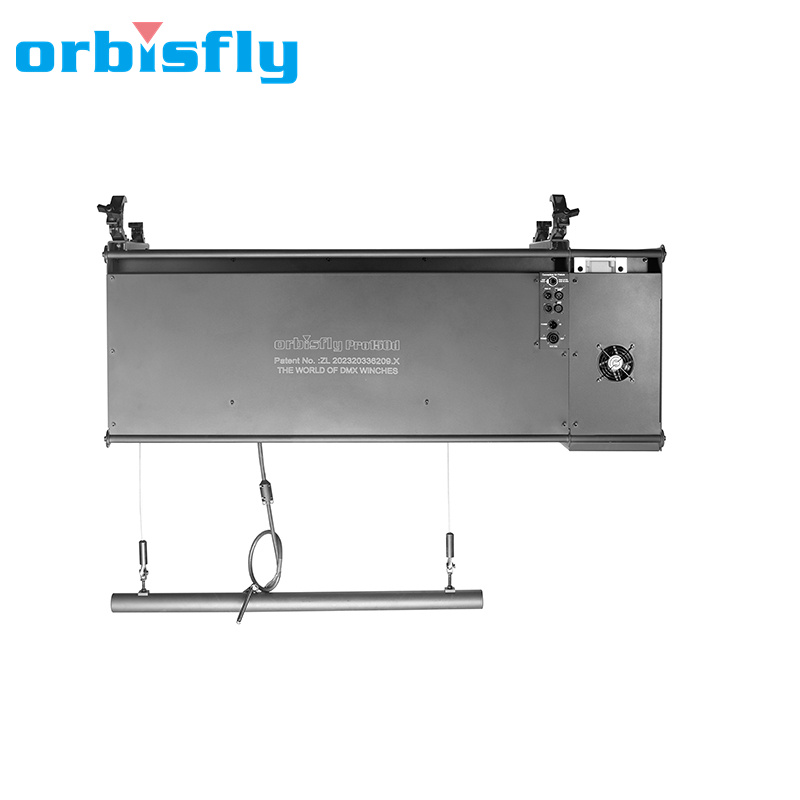

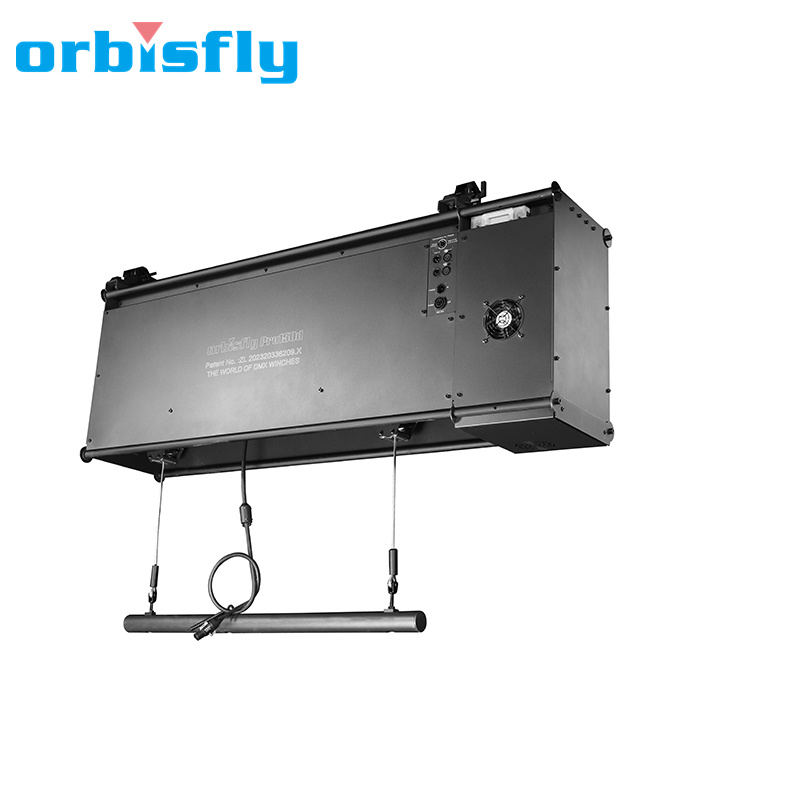

Item number: Orbisfly®Pro150d(Winch 150 Double + Power and Cat6)
Technical Details:
Lifting capacity: 150 kg (330.7 lb)
Lifting height: 12m (40 ft) / 20m (65.6 ft)
Lifting speed: 70 cm/s (3.5-27.56 in/s)

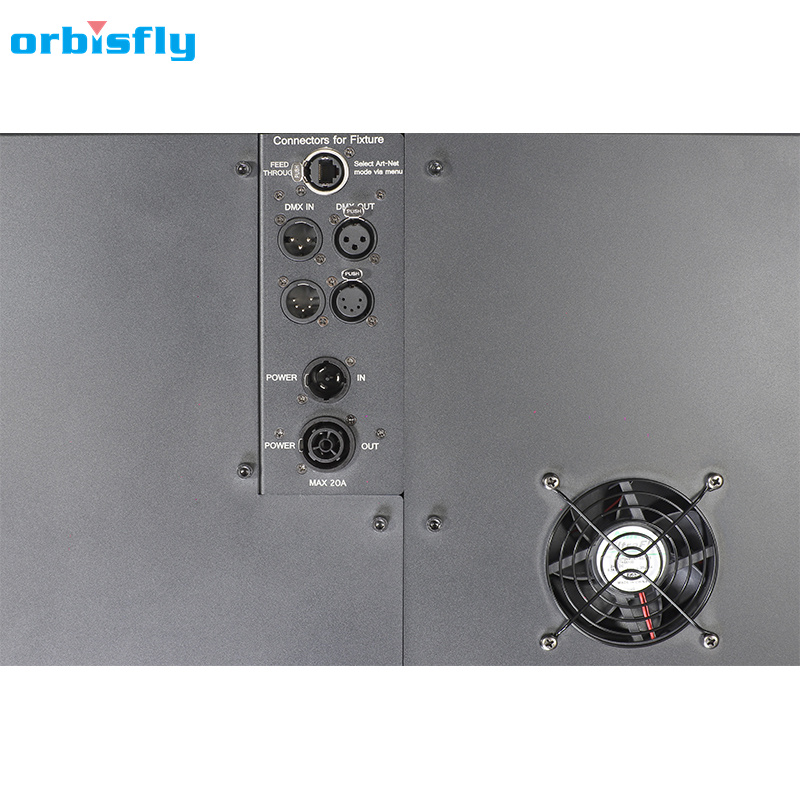

Through Connection - Input: Neutrik powerCON TRUE1 & EtherCON (F)
Through Connection - Output: Neutrik powerCON TRUE1 & EtherCON (M) & XLR3 & XLR5 & HDMI
Through Connection - Power: 20A/240 VAC or DC (class II) 2x2.5mm2 (AWG14)
Through Connection - Signal: Four twisted pairs Cat6 (5120 Mbit/s)
Ethernet: Art-Net, sACN
Voltage: 200-240 VAC (110V need customized)
Frequency: 50-60 Hz
Power consumption: 1300 W (Automatically adjust according to the load)

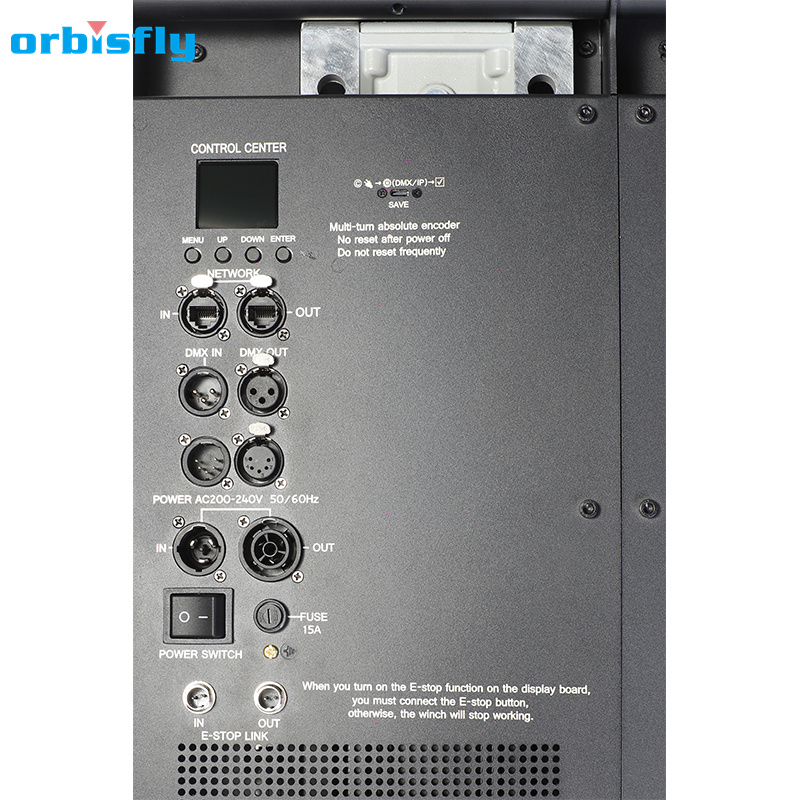

Power inlet: Neutrik powerCON TRUE1 NACPX (F/M)
DMX control signal: DMX 512 1990+DMX512A
DMX channels: 6/7
DMX control connection: 3/5 Pole XLR (F/M)
Ethernet control connection: ArtNet&sACN protocol through Ethernet cable(2 RJ45 D-Shape Connector)
Snap hook: 2x8 mm (5/16 in) galvanized steel w/Bar 708mm (27.8 in) 925mm (36.4 in)
Minimum load: 5 kg (11.02 lb)
Noise emission: ≈50 dB at 1m (3.3 ft)
Ambient temperature: 5-40 °C (41-104 °F)

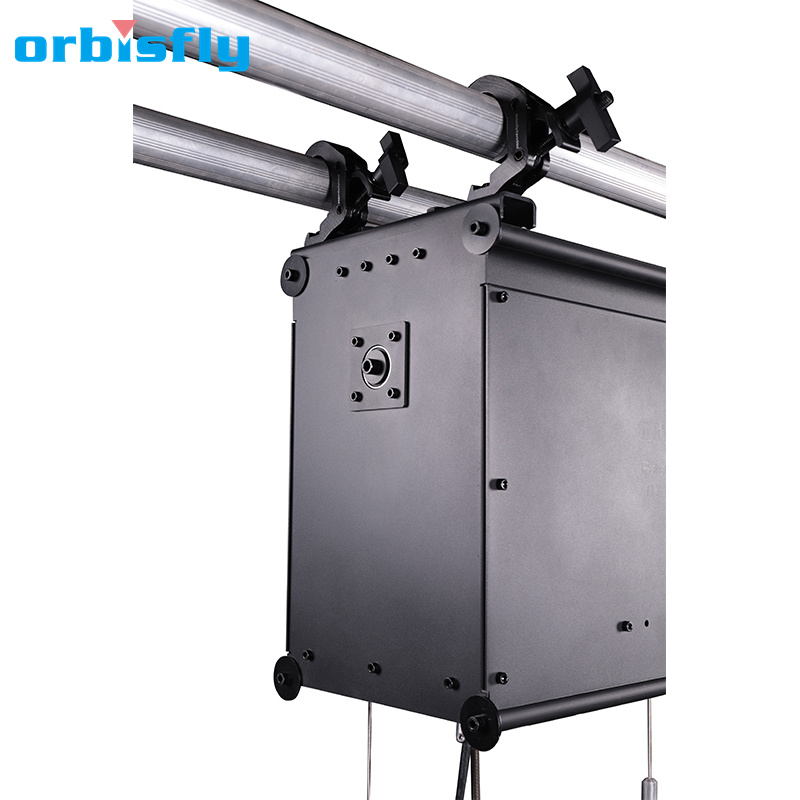

Mounting clamp: 4 x Slim eye coupler 42-52 mm (2 in)
Servo Motor: 230 VAC, 1300 W (multi-turn absolute encoder)
Duty cycle: 100% can run 24 hours with load
Lifting wire: 5 mm (1/5 in) 19x7 galv. steel wire (EN 12385-4)
Minimum wire breaking load: 1910 kg (18731 N / 4211 lb)
Wire safety factor: >8
Weight: 70 kg (154.3 lb) / 104.7 kg(230.8 Ib)
Dimensions: 1082×313×687 mm / 1380×313x687 mm
