DMX Winch （Orbisfly & DiGidot）and light fixtures f

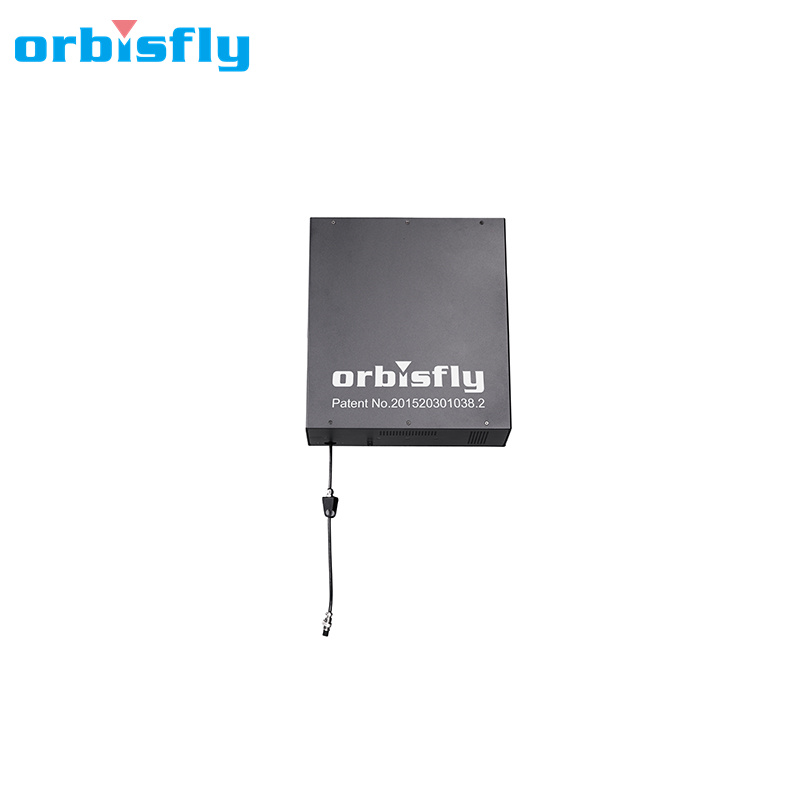

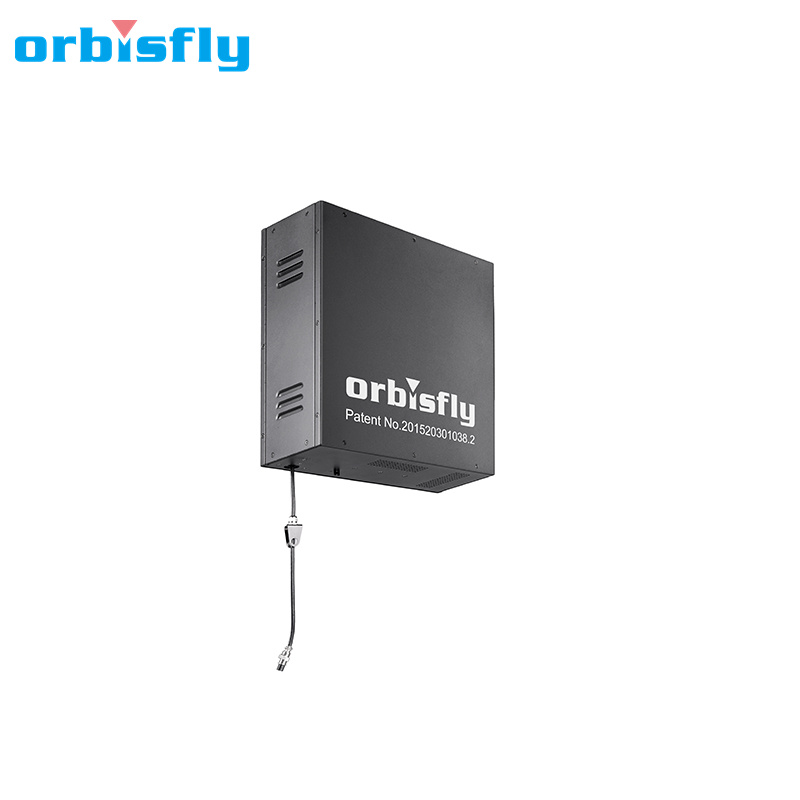

Newest ES-L28 DMX Winch

Newest ES-L28 DMX Winch support Artnet, sACN. RJ45 ports. A single device can control 160 Pixels. The lift cable has also been thickened(from4x0.14㎡ to 4x0.3㎡), and the internal slip ring has been upgraded for higher power.



Product model: ES-L28

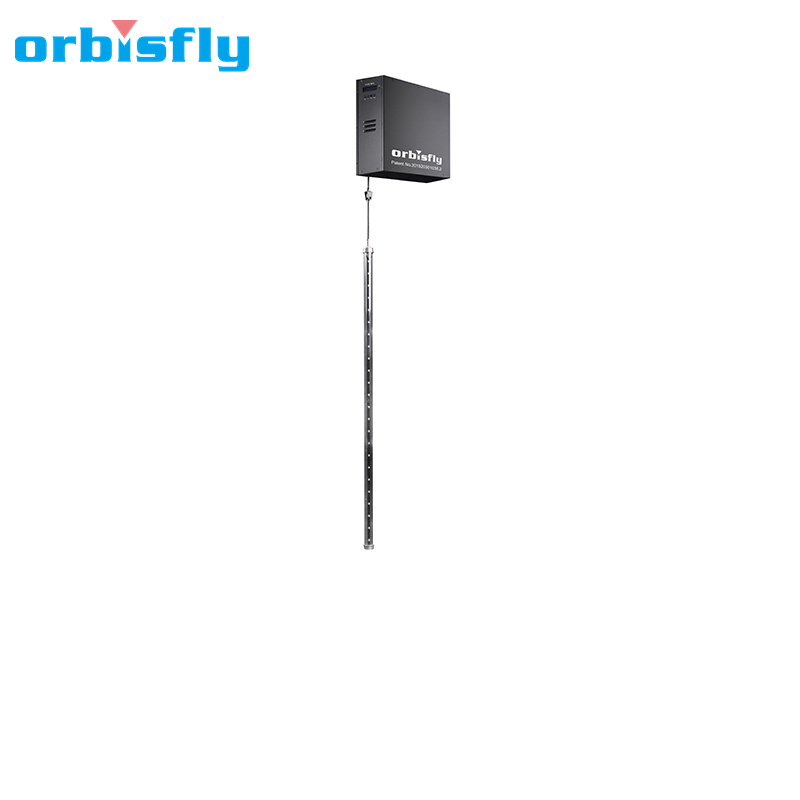

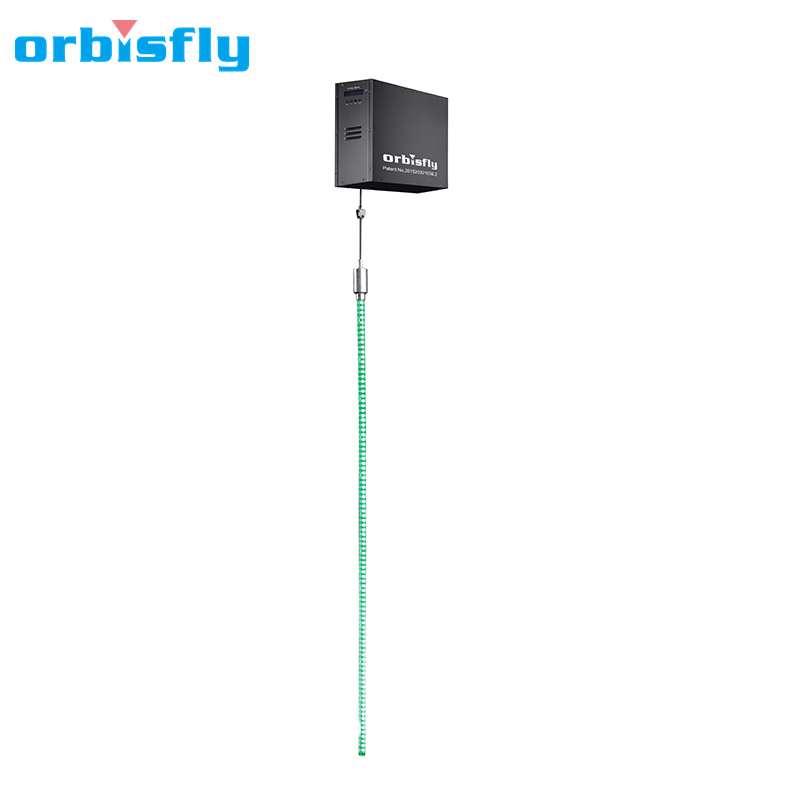

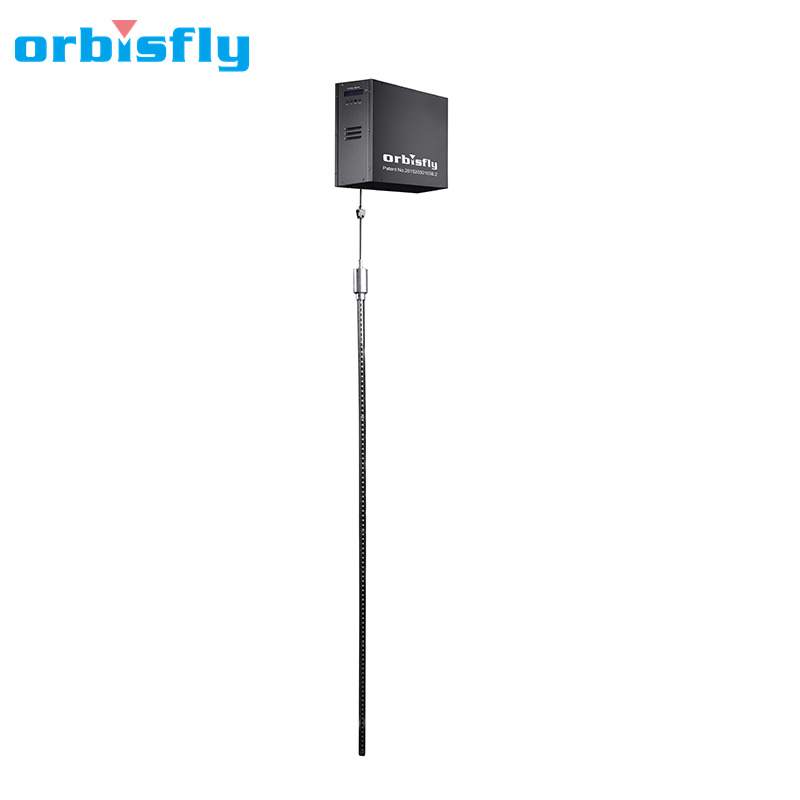

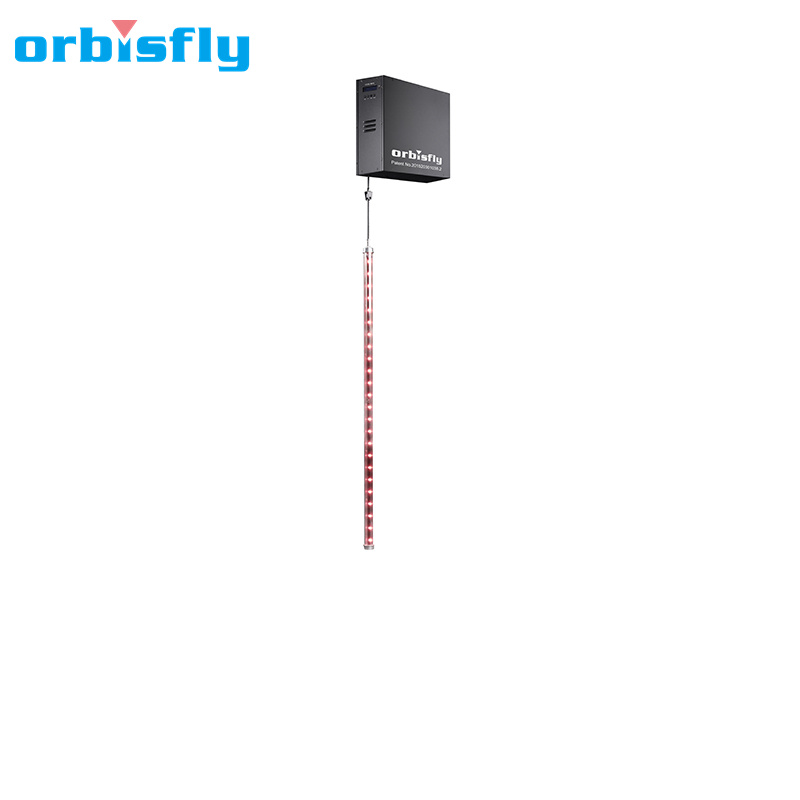

Kinetic lighting with RGB&Pixel control
Specification：
Lifting height, m :  6M/9M/12M
Lifting speed, cm/s :  75
Load on cable, MAX kg :  1.5/1.2
Net Weight, kg :  5.7
Gross Weight,kg :  7
Power consumption, W :  40
Working temperature,°C :  5-45
Protection rating :  IP20
Dimension,LxWxH, mm :  291*300*127
Carton size,LxWxH, mm :  365*360*365(2in1)
DMX channels :  RGB: 5/6/9/10 CH
Pixel: 1,6,12,18,24,36,48,60,72,84,96,108,120,132,144,160
487CH at maximum 160 pixels.
Control mode :  DMX512 console or Madrix software/RDM function
Operation menu :  LCD1602 SCREEN DISPLAY

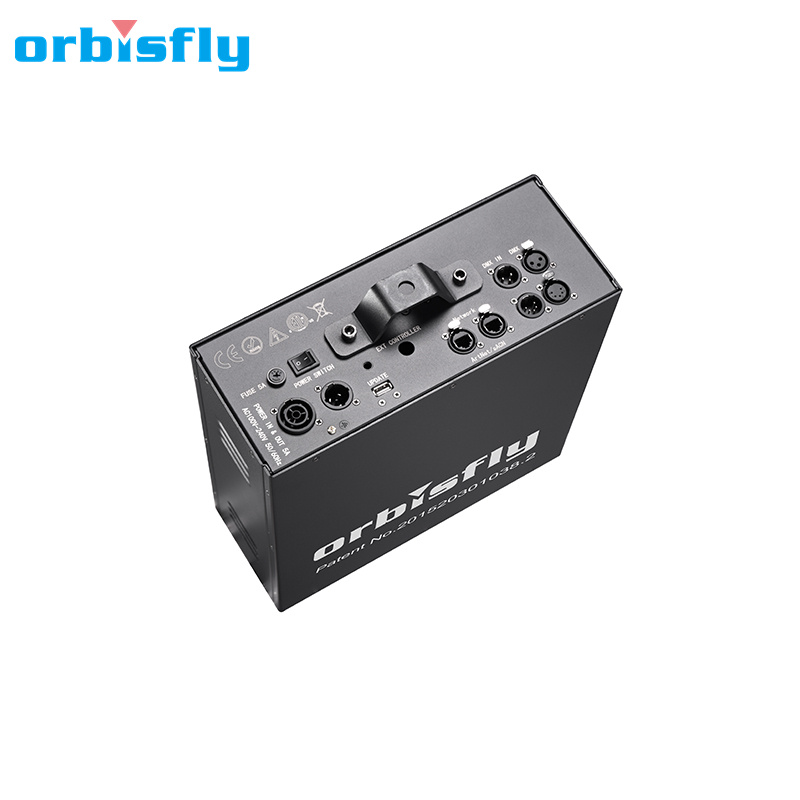

Power Connect :  PowerCon:IN & OUT
DMX XLR :  5PIN XLR & 3PIN XLR
Power supply :  100V-240 VAC, 50-60 Hz
Power on cable :  4 cores, var. 1-24 VDC 2A(max) for ch
More information: we will send new version ES-L28 menu with user manual.
