3D Web Light

3D Web Light HDMI Version

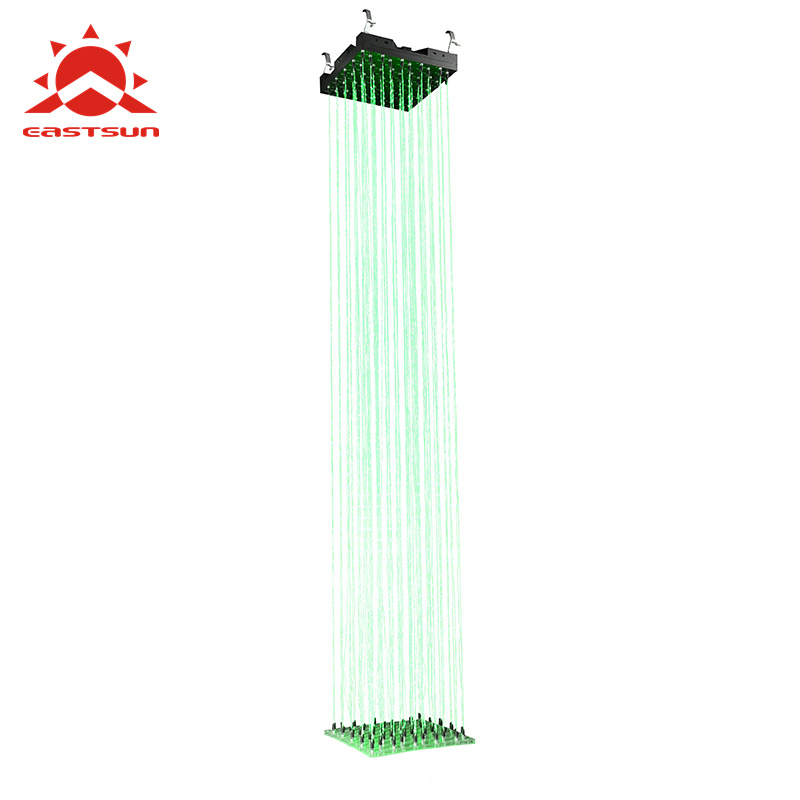

Web Light is a 3D stereoscopic LED matrix that utilizes each LED to show a full 360 degree viewing experience, transparent base with magnetic snap-together assembly. Supporting NovaStar or Mooncell control system, the control systems can be selected based on customer needs.

Stand Module Parameter:

Module Size：500x500 mm

String：6M length (The length can be customized.)

String color: black or white for choice

LEDs per String： 120 LEDs

String Qty：100 strings，replaceable

Resolution：12000 LEDs

Base：17mm Polycarbonate board 17mm

Power：Sleeping ：65W

Average： 500W

Peak：1400W

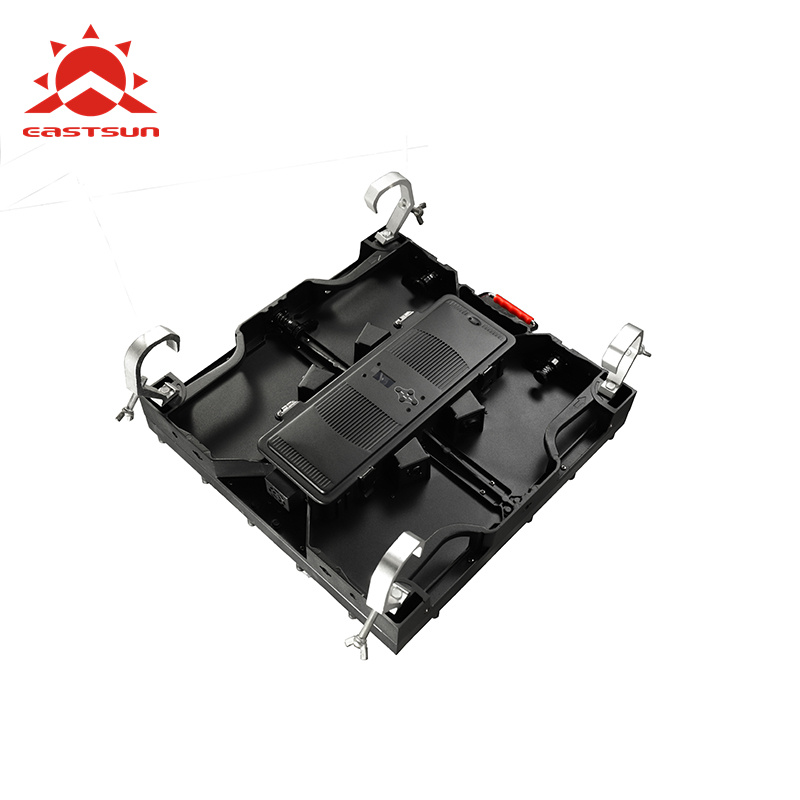

1. 500*500 Die-cast

2. Support matrix splicing with quick-locks

3. Support NovaStar or Mooncell control system (selectable)

4. 10*10 LED Strings，12000pcs RGB LEDs

5. Support hanging installation with M12 clamps

6. Transparent base with magnetic snap-together assembly

7. Input voltage：100-240Vac，50/60Hz

8. Power socket：Seetronic PowerConTrue1 IN/OUT

9. Communication interface：Seetronic RJ45 Connector

10. Dimensions：500*500*6185mm（L*W*H）

11. Weight（not include strings）：17Kg
