Order code:ES-L29 (RGB/Pixel version)

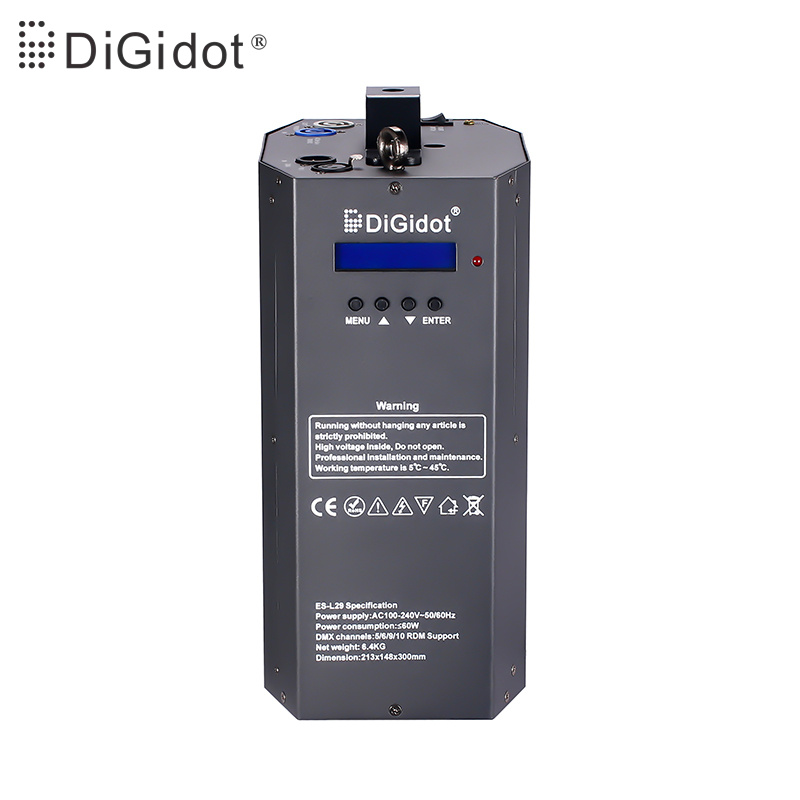

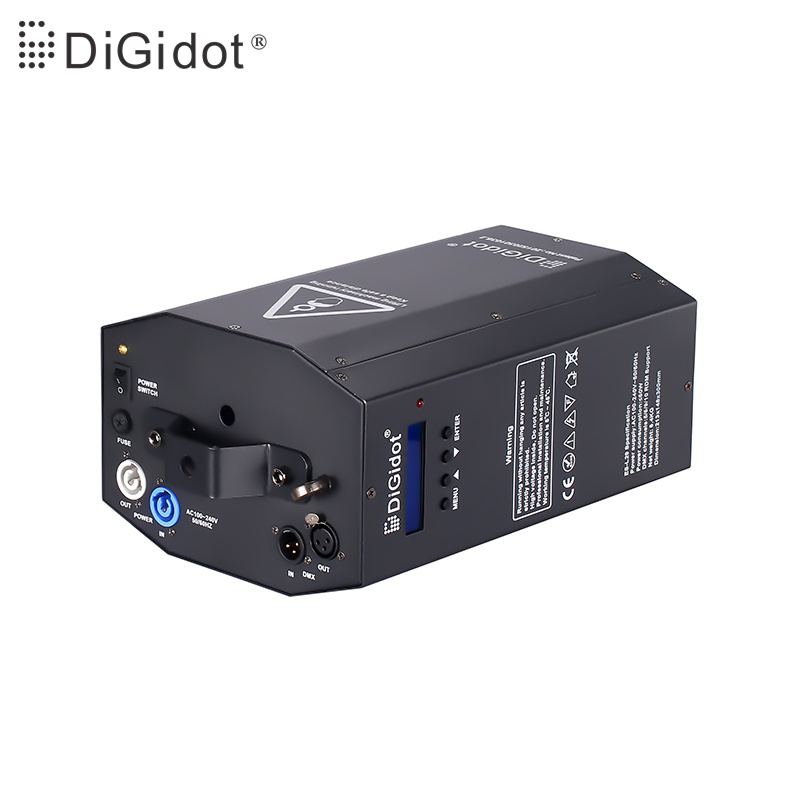

Product model: ES-L29 Kinetic lighting with  RGB/Pixel control

Specification: 3.3M / 6M

Lifting height, m: 3.3 / 6

Lifting speed, cm/s: 75 / 75
Load on cable, MAX kg: 1.2 / 1.2
Net Weight, kg: 6.2 / 6.3
Gross Weight, kg: 7.2 / 7.3
Power consumption, W: 40
Working temperature, ℃: 5-45
Protection rating: IP20
Dimension, LxWxH, mm: 213 *148 *300
Carton size, LxWxH, mm: 530 *390 *200 (2PCS winches in 1Carton)
DMX channels: 5/6/9/10 Channels
Control mode: DMX512 console or Madrix software /RDM function
Operation menu: LCD 1602 SCREEN DISPLAY
Power Connect: PowerCon: IN & OUT
DMX XLR: 3PIN XLR
Power supply: 100V-240 VAC, 50-60 Hz
Power on cable: 4 cores, var.  1-24  VDC  1A(max)for ch
