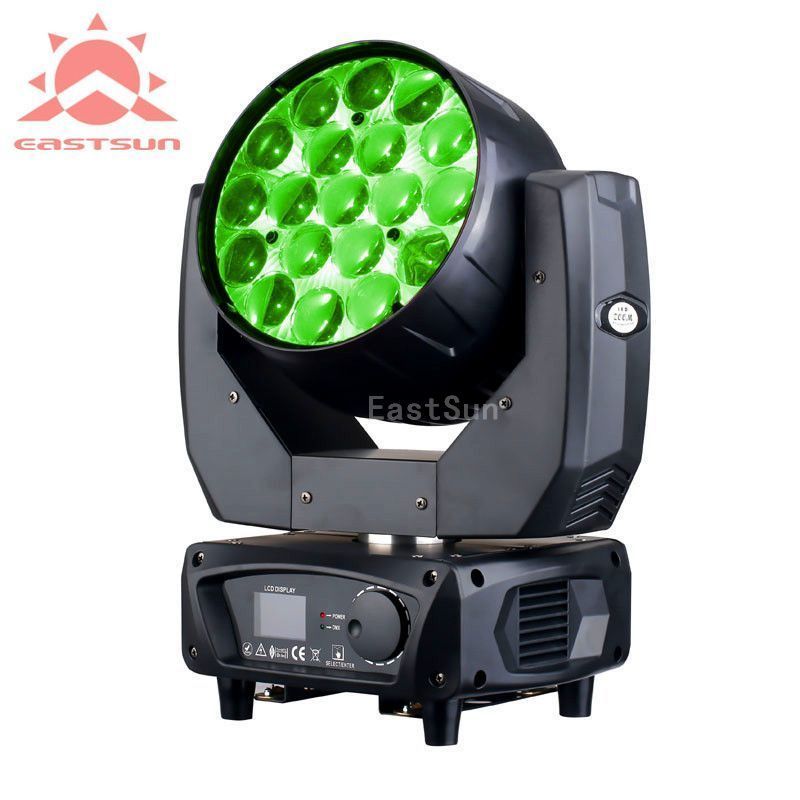

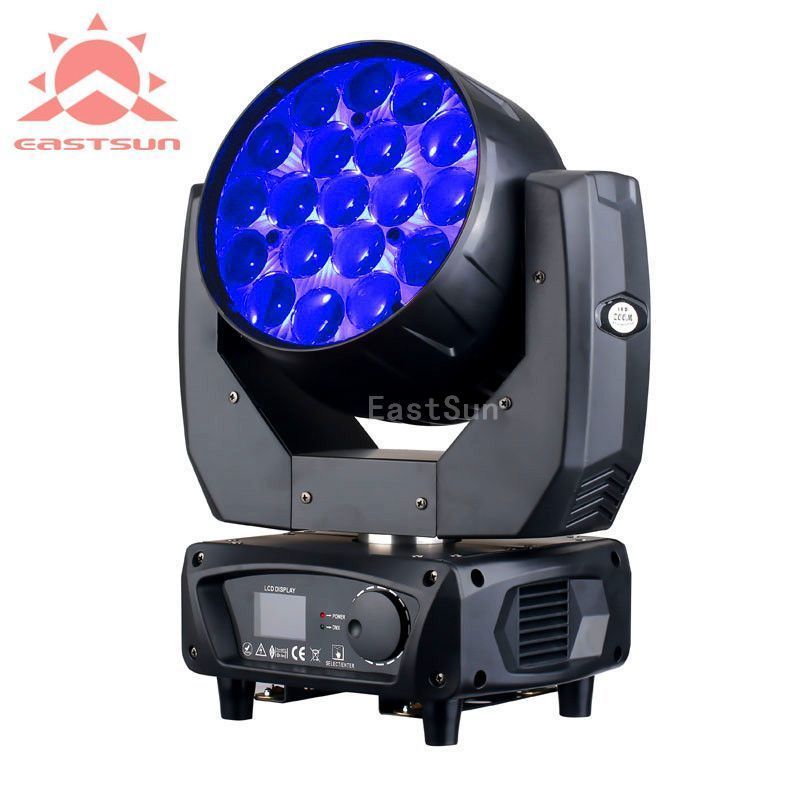

LED Moving head
HALO 1915Z

ES-ML01C HALO 1915Z

 Optics and light source

.Zoom System :10°-60°(Structure Patent:ZL2014 2064 9862.2)

.Highly efficient lens system

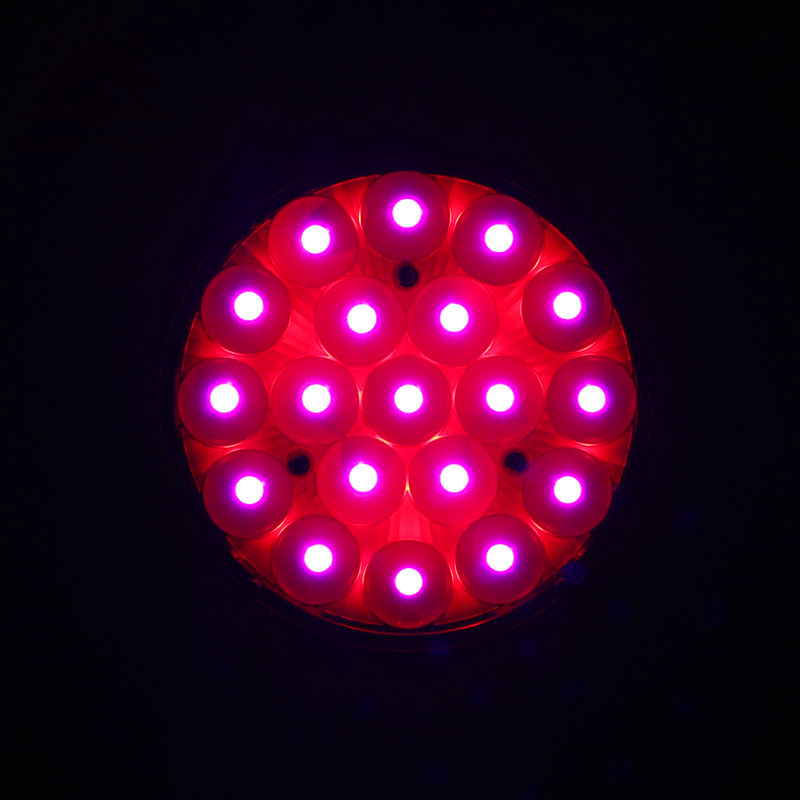

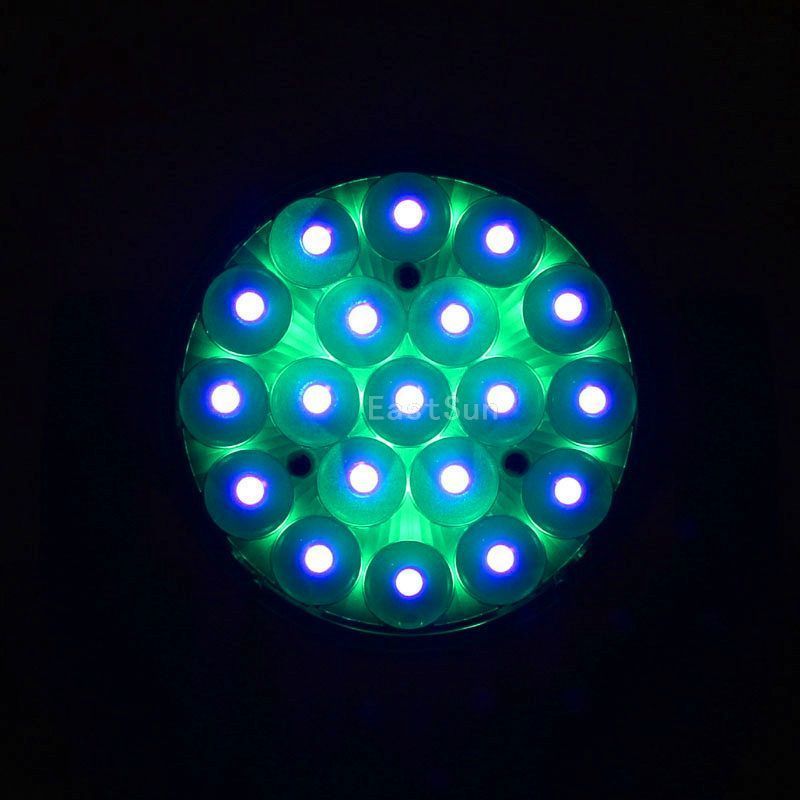

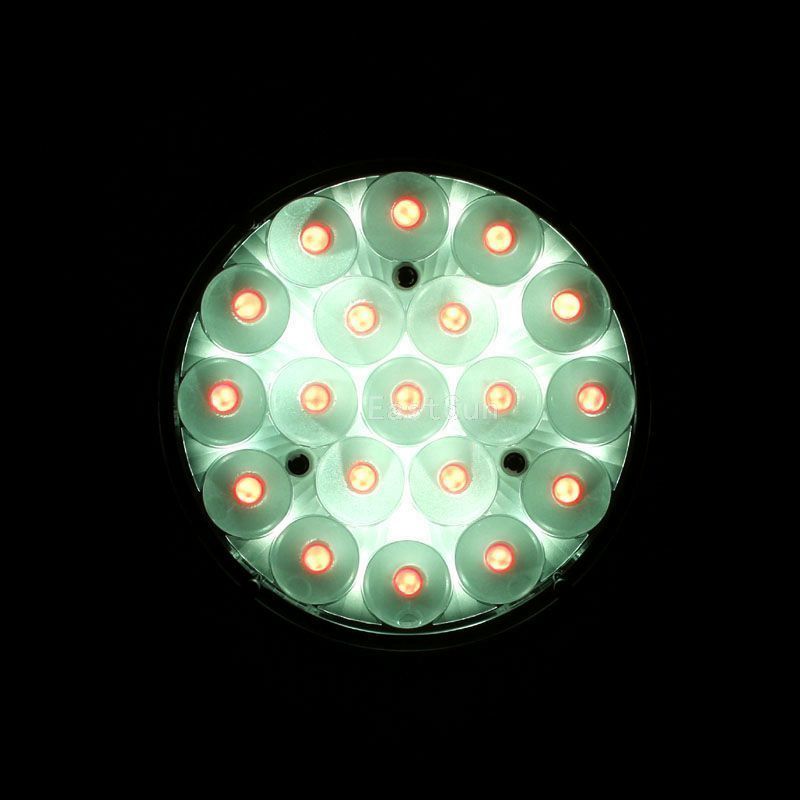

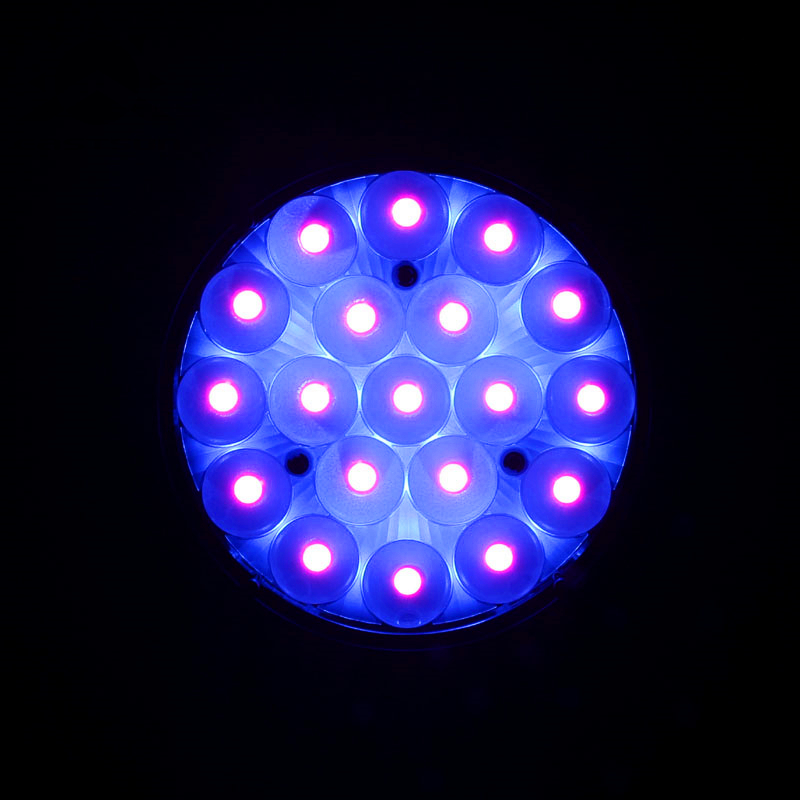

.19 RGBW multichip LED max. 15W

.Round beam without gaps between the lenses



Effects

.Beam color mixing: RGBW

.Halo(second) color mixing: RGB

Power consumption

.Input Voltage: AC 100-240V, 50/60Hz

.Power Consumption:  300W



Control Channels: 25/14

Fan speed:Automatically adjust cooling-fan

On-board: LCD screen

Movement:

.High resolution 3 phase stepping motors

.Precise and fast movement

.Low-noise, suitable for sound-sensitive

.Pan/Tilt: 540°/ 270°

.Pan/Tilt Resolution: 16 bit



.2x Omega brackets for quick and comfortable

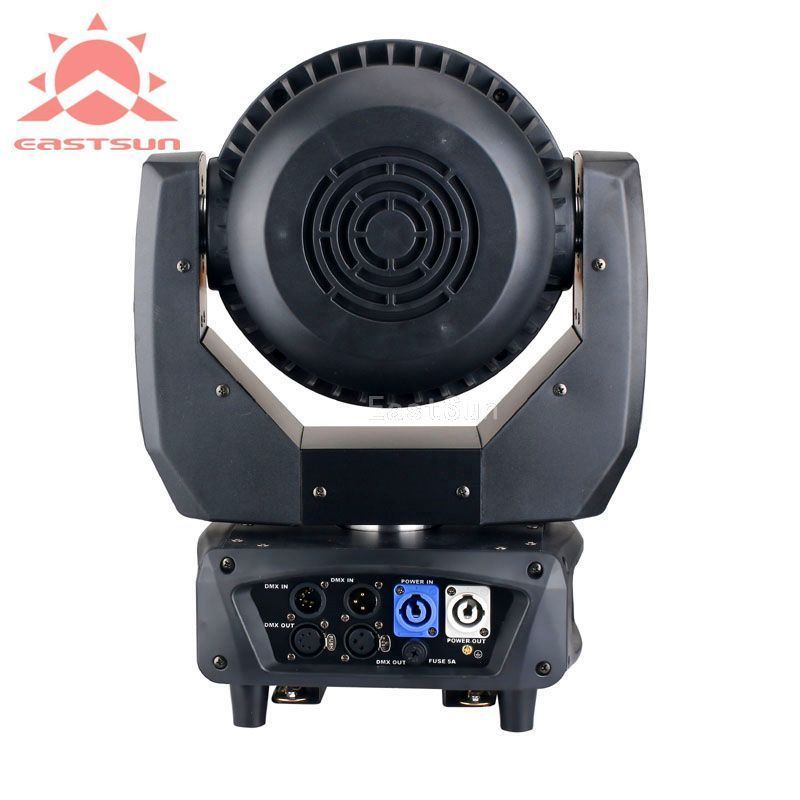

.3pin and 5pin connectors

.Powercon Socket:Powercon in/out

.Net Weight: 8.2 kg

.Dimensions: 324 x 203 x 390mm



Certification: CE, RoHS and SGS

Features
Download

ES-ML01C HALO 1915Z

 Optics and light source

.Zoom System :10°-60°(Structure Patent:ZL2014 2064 9862.2)

.Highly efficient lens system

.19 RGBW multichip LED max. 15W

.Round beam without gaps between the lenses



Effects

.Beam color mixing: RGBW

.Halo(second) color mixing: RGB

Power consumption

.Input Voltage: AC 100-240V, 50/60Hz

.Power Consumption:  300W



Control Channels: 25/14

Fan speed:Automatically adjust cooling-fan

On-board: LCD screen

Movement:

.High resolution 3 phase stepping motors

.Precise and fast movement

.Low-noise, suitable for sound-sensitive

.Pan/Tilt: 540°/ 270°

.Pan/Tilt Resolution: 16 bit



.2x Omega brackets for quick and comfortable

.3pin and 5pin connectors

.Powercon Socket:Powercon in/out

.Net Weight: 8.2 kg

.Dimensions: 324 x 203 x 390mm



Certification: CE, RoHS and SGS
